| Brand Name : | YYS |
| Model Number : | CAT5E UTP PLENUM |
| Certification : | ETL UL CPR |

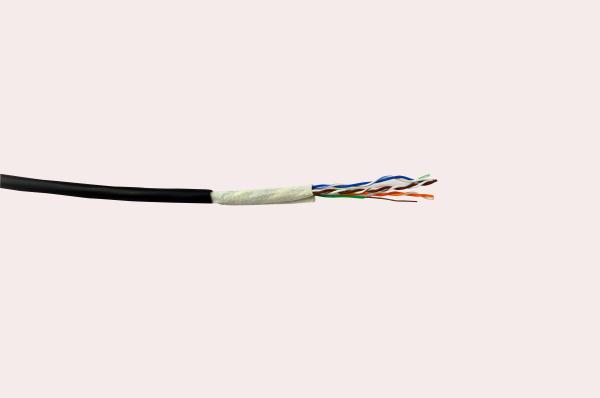

24AWG CAT5E U/UTP Plenum CMP ,Solid Bare Copper,Without Kink 100% Pass Fluke Test 1800
| Conductor | Material | Bare copper |
| Nom.O.D.(mm) | 4X2X0.50 (+/-0.005)mm | |
| Insulation | Material | FEP |
| Diameter | 0.86±0.03 mm |
Sheath Physical Properties | Before Aging Tensile Strength (Mpa) ≥10.0 Elongation(%) ≥100 | |
| Aging Period (℃×hrs) 100℃×24h×7d | ||
| After Aging Elongation(%) ≥75 | ||
Cold bend(-20±2℃×4h) 8×Cable O.D., No visible cracks | ||
Electrical Characteristics (20℃) | Capacitance Unbalance (pF/100m) ≦330 | |
| DC Conductor Resistance Unbalance (%) max 5.0 | ||
| DC Resistance (Ω/1Km) max 98 | ||
Impedance ((Ω) 1.0-100.0MHz 100±15 100.0-350.0MHz 100±20
-------- | ||
| Dielectric Test 2kv/min | ||
| Temperature Range: | -20℃ to + 75℃ |
Technical Performance (100m):
Frequency RL ATT NEXT PHASE DELAY
(MHz) ≥dB ≤dB ≥dB ≤ns
1 20.0 2.0 65.3 570.0
4.0 23.0 4.1 56.3 552.0
8.0 24.5 5.8 51.8 546.7
10.0 25.0 6.5 50.3 545.4
16.0 25.0 8.2 47.3 543.0
20.0 25.0 9.3 45.8 542.1
25.0 24.3 10.4 44.3 541.2
31.25 23.6 10.7 42.9 540.4
62.5 21.5 17.0 38.4 538.6
100 20.1 19.8 35.3 537.6
200 18 29.0 30.8 536.5
350 16.3 44.9 27.2 535
Frequency PSNEXT ELFEXT PSELFEXT
(MHz) ≥dB ≥dB ≥dB
1 62.3 63.8 60.8
4 53.3 51.7 48.7
8 48.8 45.7 42.7
10 47.3 43.8 40.8
16 44.2 39.7 36.7
20 42.8 37.7 34.7
25 41.3 35.8 32.8
31.25 39.9 33.9 30.9
62.5 35.4 27.8 24.8
100 32.3 23.8 20.8
200 27.8 17.7 14.7
350 26.3 12.9 9.9
A: Our MOQ is 10 pieces per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit.
Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through
negotiation.
5. Q: What is your manner of packing?
The color box , cartons and Wooden Drum
6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcomed.
